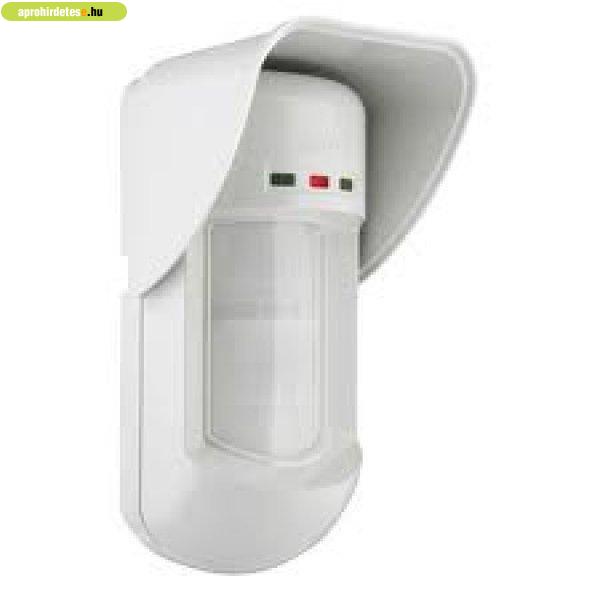

RISCO RK315DT WatchOUT kombinált érzékelő (3960) Rövid leírás: Kombinált,
kültéri mozgásérzékelő (10.525GHz) 2 db PIR + 2 mikrohullámú érzékelő van benne;
3 lencse tartozékban jár (1. függöny: 15 m 5°, 2. folyosó: 23m 5°, 3. széles
látószögű tartomány: 15m 90°). WATCHOUT (RA300B00000A) standard fali konzol
gyári tartozék; védettség: IP 65 (esővédő burkolat a nap, eső, hó, jég és
madarak ellen); kisállat védelem: 70cm-es magasságig súlymegkötés nélkül;
kitakarás (aktív IR antimaszk) és piszkos lencse jelzése; szerelési magasság: 1m
? 2,7m standard fali konzollal; áramfelv.: 70mA; működési tart.: -30°C -
+60°C-ig RISCO RK315DT WatchOUT kombinált érzékelő (3960) Features Coverage:
Wide angle: 15m (50?) 90°, Long-range: 23m (75?) 5°, Barrier: 15m (50?) 5° Pet
friendly up to 70cm (2?4??) Two microwave and two PIR channels Microwave
anti-collision allows back-to-back and face-to-face installations Flexible
mounting height 1m to 2.7m (3? to 8?) and wide range of professional swivel
brackets protective hood and IP65 environment rating RISCO Bus dramatically
reduces cabling, installation equipment and labor costs, while providing
benefits of remote services Opto relays for defeating large magnets Active IR
anti-mask and Proximity alerts Model names: RK315DT WatchOUT DT Extreme RA300B
Barrier swivel for installation 90° to the mounting surface RA300P Pole adaptor
for professional installation on poles RA300C Conduit adaptor for installation
with wiring external to the wall, when not using the standard swivel RA300SC
Swivel Metal Conduit for installation with wiring external to the wall, when
using the standard swivel RA300HS WatchOUT without electronics for ?scarecrow?
installation RA300VC WatchOUT cover with adaptor for WATEC CCD camera (camera
not included) Technical Specifications Wide angle coverage: 15m (50ft) 90°
Long-range coverage: 23m (75ft) 5° Barrier coverage: 15m (50ft) 5° RISCO Bus or
relay installation Detection Channels: Two microwave and two PIR channels 2 PIR
channel detection method: Digital Correlation? Technology 2 Microwave channels
detection method: Sway Recognition? Technology Active IR Anti-mask: Detects
beyond hood Anti-Sabotage: Directional proximity alert using 2 microwave
channels Mounting height: 1m to 2.7m (3?3? to 8?10?), 2.2m (7?2?) for barrier,
and Long Range lenses Pet immunity: Animals up to 70cm (2?4?) head height with
no weight limitation Dirty lens alert Operating voltage : 9-16 VDC Alarm
contact: NC, 100mA, 24 VDC Tamper contact: NC. 100mA, 24 VDC Mask/ Fault
contact: NC , 100mA, 24 VDC Dirty lens output: 70mA open collector Environment
rating: IP 65 Operating temperature? -30°C to 60°C (-22°F to 140°F) Dimensions:
230 x 121 x 123mm (9? x 4.76? x 4.85?)
