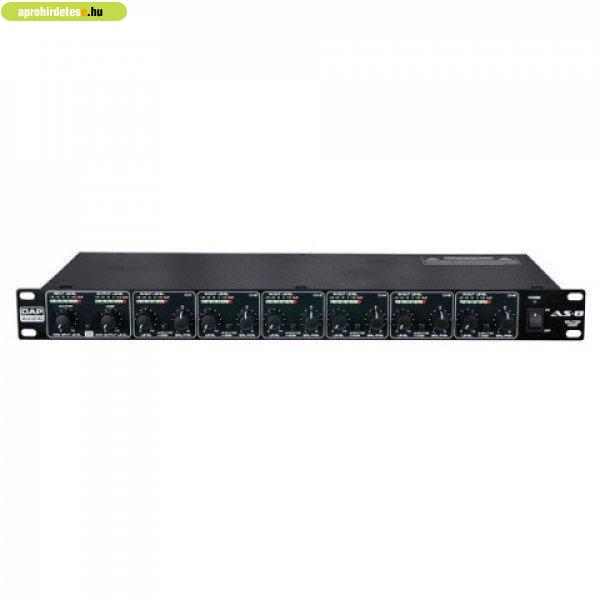

Dap Audio AS-8 audio spiltter
• Selectable splitter/mixer function• Wide range
headroom• 8 inputs• 8 outputsThe AS-8 can be used for several
purposes. Due to its intelligent design the users can easily switch between a
controllable audio mixer with several inputs, or a signal splitter with several
controllable outputs. This makes the AS-8 a multifunctional solution for your
own monitor mix, multi zone systems, conference applications and
more.SpecificationsInput Connectors: XLR and 1/4" TRSInput impedance: 50
KOhm balanced, 25 KOhm unbalancedMax. input level: +21 dBuOutput connectors: XLR
and 1/4" TRSOutput impedance: 60 Ohm balanced, 30 Ohm unbalancedFreq
Response: 5 Hz – 40 KHzControls: input levels, output levels, main
link switch, bal/pan switch, ground liftSNR: >95 dBuTHD: < 0,002% typ. @
+4 dBu, 1KHzIndicators: 6-digits LED 18/-12/-6/0/+12/clipPower Supply: 230V AC,
50HzConsumption: 15WDimensions: 483x195x44 (WxDxH)Weight: 2,7Kg
headroom• 8 inputs• 8 outputsThe AS-8 can be used for several
purposes. Due to its intelligent design the users can easily switch between a
controllable audio mixer with several inputs, or a signal splitter with several
controllable outputs. This makes the AS-8 a multifunctional solution for your
own monitor mix, multi zone systems, conference applications and
more.SpecificationsInput Connectors: XLR and 1/4" TRSInput impedance: 50
KOhm balanced, 25 KOhm unbalancedMax. input level: +21 dBuOutput connectors: XLR
and 1/4" TRSOutput impedance: 60 Ohm balanced, 30 Ohm unbalancedFreq
Response: 5 Hz – 40 KHzControls: input levels, output levels, main
link switch, bal/pan switch, ground liftSNR: >95 dBuTHD: < 0,002% typ. @
+4 dBu, 1KHzIndicators: 6-digits LED 18/-12/-6/0/+12/clipPower Supply: 230V AC,
50HzConsumption: 15WDimensions: 483x195x44 (WxDxH)Weight: 2,7Kg
