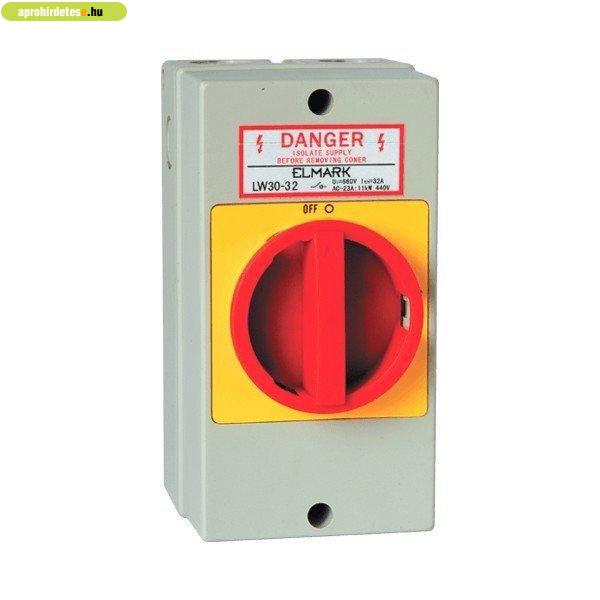

FORGÓ KAPCSOLÓ LW30-32 32A 3P ZÁRHATÓ, VÍZHATLAN BURKOLATTAL
Technical characteristics: - Power supply voltage: 230/400V, 50Hz - Number of
levels: 3 - Number of positions: 2 - Option for control of access - Insulation
voltage: 690V - Impulse voltage withstand: 6000V - Mechanical wear resistance:
3?105 commutation cycles - Operating temperature: -10°? - +50°? - Humidity:
35-85%RH - Commutation capacity: 20-63A - Resistant to UV rays plastic - Cable
connection: screw joining - Tightening torque of the bolt: 1.33Nm - Maximum
section of the power supply conductors: 16.0mm2 Mounting: - Directly to the
control panel - Thickness of the surface: max 5mm Standards: EN 60947-1; EN
60947-3-1
levels: 3 - Number of positions: 2 - Option for control of access - Insulation
voltage: 690V - Impulse voltage withstand: 6000V - Mechanical wear resistance:
3?105 commutation cycles - Operating temperature: -10°? - +50°? - Humidity:
35-85%RH - Commutation capacity: 20-63A - Resistant to UV rays plastic - Cable
connection: screw joining - Tightening torque of the bolt: 1.33Nm - Maximum
section of the power supply conductors: 16.0mm2 Mounting: - Directly to the
control panel - Thickness of the surface: max 5mm Standards: EN 60947-1; EN
60947-3-1
Adatlap
| Ár: | 18.232 Ft |
| Termékek: | Villanyszerelési |
| Feladás dátuma: | 2025.12.13 |
| Eddig megtekintették 15 alkalommal | |
